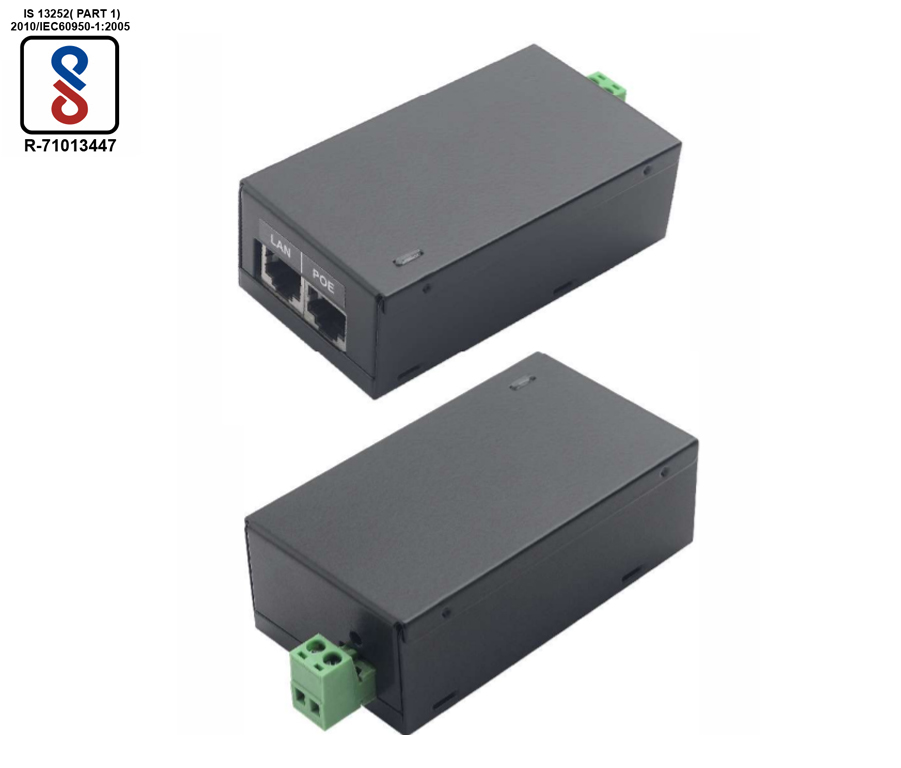

SPS-DC-POE-48

MODEL: SPS-DC-POE-48

  • Features
  • Specifications
  • Applications
  • Diagram
  • Wide Range DC Input 36~90VDC (48VDC)
  • Input Thru. Screw Type Connectors
  • Short Circuit, Over Load/Voltage Protections
  • Low Working Temp. & High Efficiency Design
  • 10/100 MbPS Data Rates.
  • Regulated O/P with low Ripple
  • Rugged M.S. powder Coated Body
  • Ideal for midspan appications
DC Input : 36~90Vdc
Inrush Current : 30A. Maximum.
Input Surge : 2KV
DC Output : 24V@500mA-12WMax.
Ripple / Noise : < 1% Pk-Pk (BW 20Mz.)
Over Voltage : @125% (+/- 5%) of OPV
Isolation I/P – O/P : 2KV
Working Temp. : -10 ~ 60 Deg. C.
Efficiency : 85% Typ.@ Rated Load.
Safety Standards : As per Ul1950, IEC950,BIS
LED Indications : Green ....Load ON
Compliance : EMI FCC Part 15 Class B
En55022 Class B, IEC61000
I/O Pinout : PIN 3&6...+56VDC
PIN 1&2...GND.
IEEE 802.3AF / At Comp.: YES (10/100)
I/O Connectors. : RJ45Conn. Metal Shielded
Housing : MS Metal Casing
Max. Cable Run : 100Mts ( Ethernet Limit)

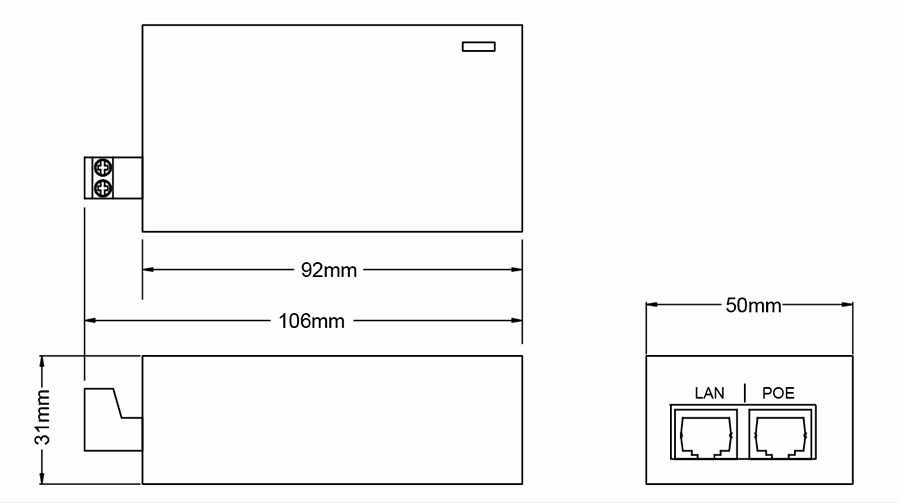

Dimension (LxWxH) : 92 X 50 X 31mm.
  • Telecom Industry
  • CCTV
  • Access Controls
  • Fire Safety
