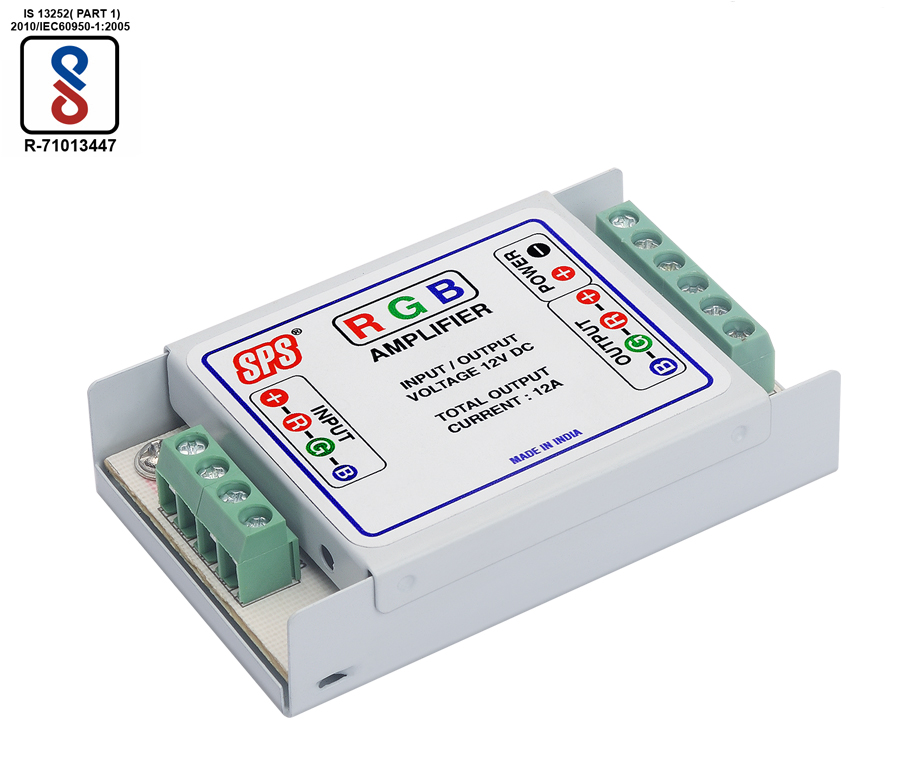

SPS-RGB3-AMP
MODEL: SPS-RGB3-AMP
- Compatible with RGB Controller (3 Channel)
- Compatible with Led RGB Strips, Single & Double Chip.
- Compact & Easy Connection
- Excepts PWM signal Input
- Load Capacity 144W
- 1 Year Warranty
| Input Voltage : | 12 ~ 24VDC |
| Output Voltage : | 12 ~24VDC |
| Output Current : | 4A Each Channel |
| Output Power : | 144W |
| Dimension (L x W x H) : | 67 x 30 x 20 mm |
| IP Rating : | IP40 (Non Waterproof) |
| Protection Class : | III |
A RGB Amplifier is used to boost the amount of power provided to the LEDs. In conditions wherein the overall wattage of these LEDs exceeds the load of the initial power supply, it allows you to increase the size/length of your lighting installation.
Number of LEDs you aim to power, determines size of the power supply that the RGB Amplifier shall require.
Each amplifier requires it’s own power supply.
The RGB Amplifier is easy to install and uses standard terminal block connectors.
Before installing this product, please read this manual carefully to ensure full understanding of the specification to avoid unnecessary damage.
