SPS-DC24048
MODEL: SPS-DC24048
- DC Input Range 18~36VDC
- Input & Output Thru. Screw Type Connectors
- Short Circuit, Over Load/Voltage Protections
- Low Working Temperature & High Efficiency
- Super Slim Compact Design & Light Weight
- Reliable & Cost Efficient
- BIS Certified Design
- 1 Year Product Warrant
| DC Input : | 18 ~ 36DC |
| Inrush Current : | 15A. Maximum. |
| Input Fusing : | Fusible Resistor |
| DC Output : | 48V..1A(48W) Max. |
| Ripple / Noise : | Less Then 1% Pk-Pk (BW 20Mz.) |
| Over Voltage : | Set at 125% (+/- 5%) of Output Voltage |
| Withstand Voltage : | I/P – O/P : 2KV |
| Working Temp. : | -10 ~ 60 Deg. C. |
| Efficiency : | 85% Typical.@ Full Rated Load. |

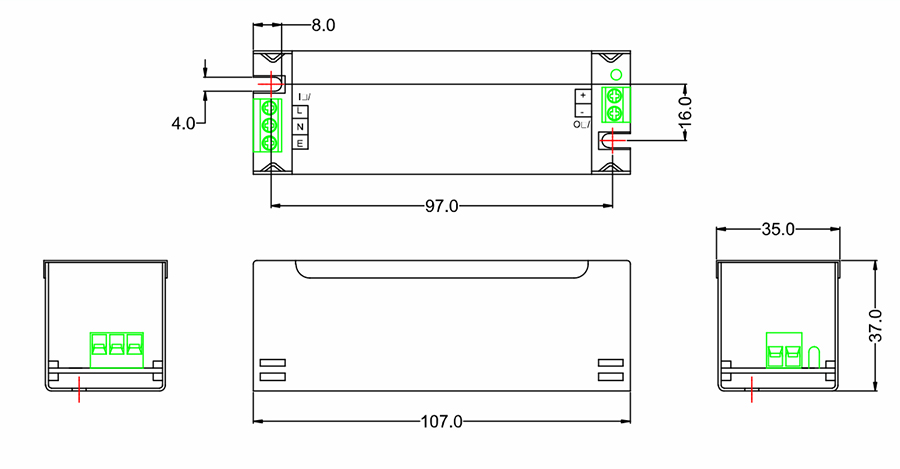

| Dimension (LxWxH) : | 107 X 32 X 37mm |
| Safety Standards : | BIS Certified |
Note : All Specs Subject to change without notice.
- Industrial Control Panels
- Telecom Industries
