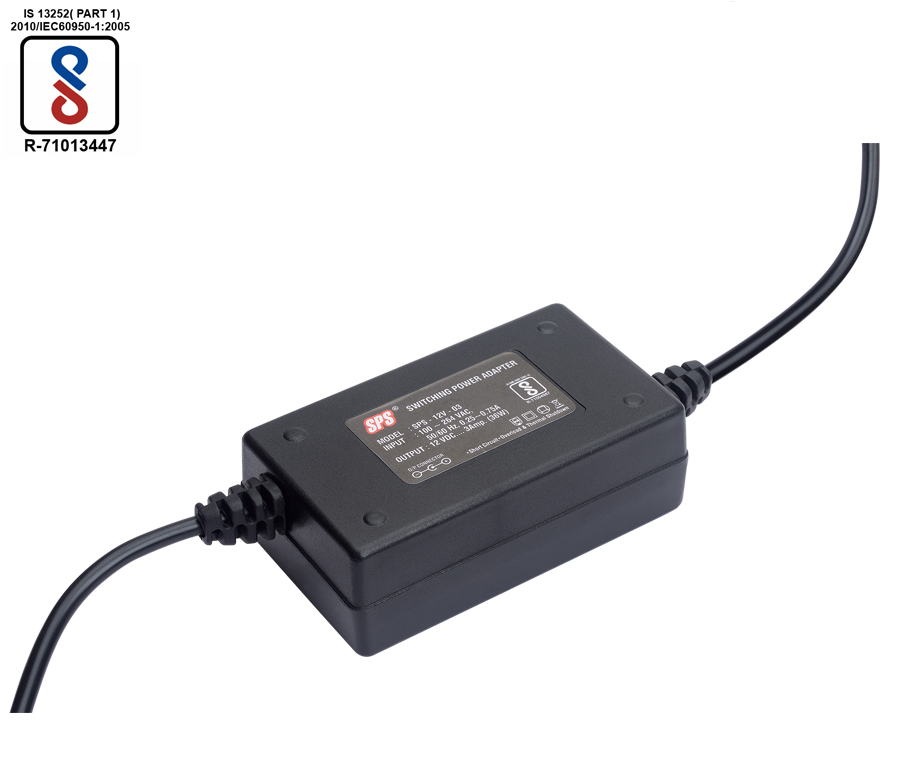

SPS-12V-03 (Table Top)

MODEL: SPS-12V-03 (20~36W)

120W CV SMPS O/P CHART.
Model O/P Voltage O/P Current
A 12Vdc 3Amp.
B 24Vdc 1.5Amp.
  • Features
  • Specifications
  • Applications
  • Diagram
  • Wide Range AC Input 100~264VAC
  • I/P AC Thru. Mains Cord & O/P Thru. Molded DC Pin
  • Short Circuit, Over Load/Voltage Protections
  • High Efficiency & Low Working Temperature
  • Reliable & Cost Efficient
  • BIS Certified Design
  • 1 Year Product Warrant
AC Input : 100 ~ 264Vac, 50/60Hz.
Inrush Current : 15A. Maximum.
Input Surge : 2KV
Input Fusing : 3A, 250Va.
DC Output : As per Chart.
Ripple / Noise : < 1% Pk-Pk (BW 20Mz.)
Over Voltage : @125% (+/- 5%) of OPV
Withstand Voltage : I/P – O/P : 2KV
Working Temp. : -10 ~ 60 Deg. C.
Efficiency : 85% Typ.@ Rated Load.

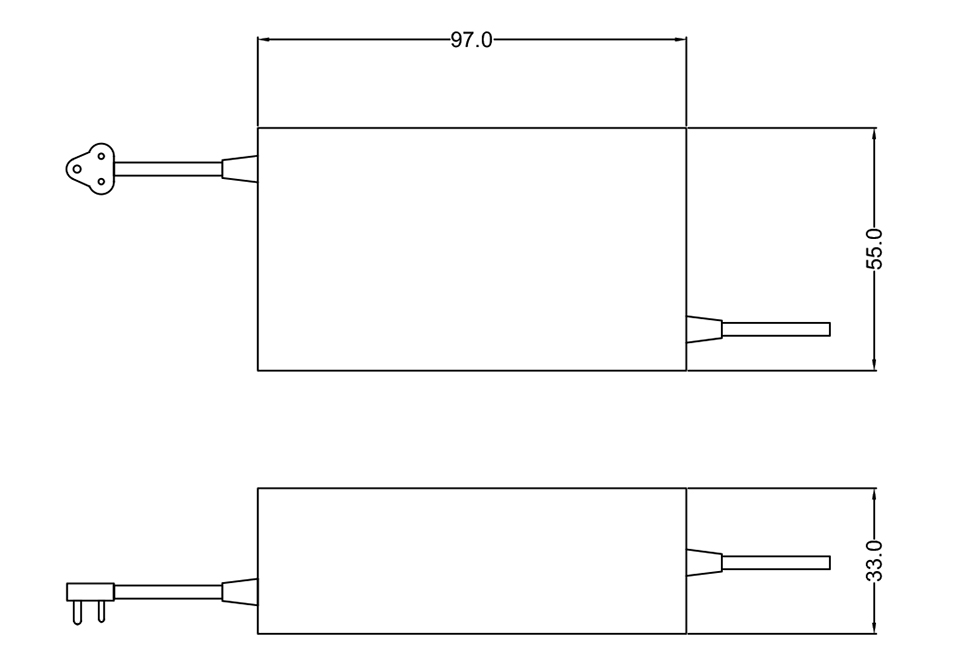

Dimension (LxWxH) : 95 X 55 X 33mm
Safety Standards : BIS Certified

Note : All Specs Subject to change without notice.

  • Telecom Industry
  • Set-Top Box
  • RO Filters
  • CCTV
  • Fire Safety
